Name: Transmission Chevron V Belt

Application: Rubber Cleated Conveyor Belt, add patterns on flat conveyor belt, it can be used for 0-40 degree angle for material handling. And it can be customised according to the transportation system.

The Advantage: large angle range for conveying;

 slip resistant;

 customised pattern;

 low maintenance and big capacity;

Product Description

 Carcass: Nylon, EP, Cotton;

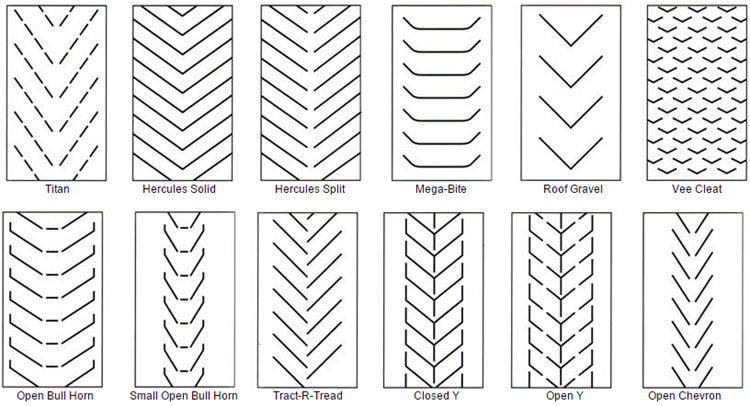

 Model: Roof Gravel, Vee Cleat, Closed V, Closed Y, Open V, Open Y and etc.

 Ply: 1~10

 Width: 300mm~2400 mm;

 Thickness: 4 mm~ 20 mm;

 Cover Grade: 10 Mpa, 12 Mpa, 15 Mpa, 18 Mpa, 20 Mpa, 24 Mpa, 25 Mpa;

 Standard: DIN22102, GB/T 7894-2001;

 Warranty: 1 year

V model:

• Packaging & Shipping

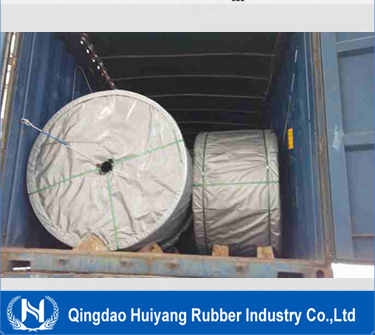

Rubber belt, PP bags all side, steel core inside, packed in rolls.

Delivery: 30 days

Port of shippment: QINGDAO, CHINA.
